Armament Technology just released the brand new 7-35x56 with an all new design, featuring a 36mm main tube and parallax down to 10 meters. It is also 24mm SHORTER than the TT525P.

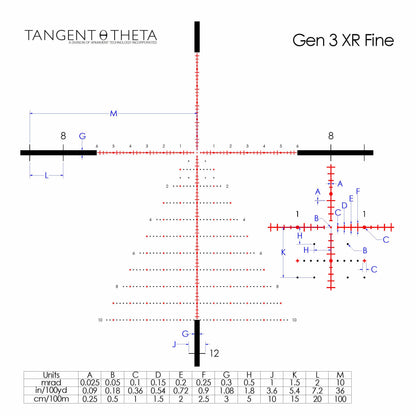

PLEASE NOTE: We are accepting orders for deliveries with a lead time of 90 -120 days from date of order on the GEN 3 XR FINE reticle version.

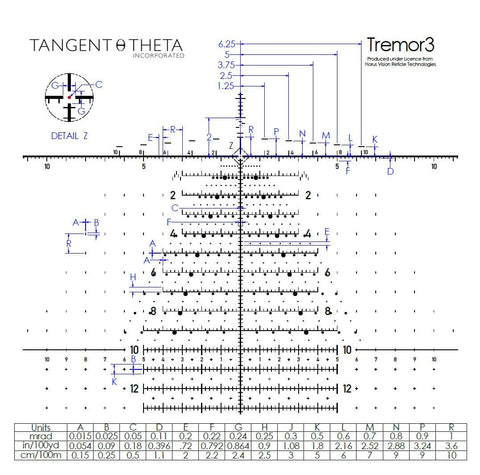

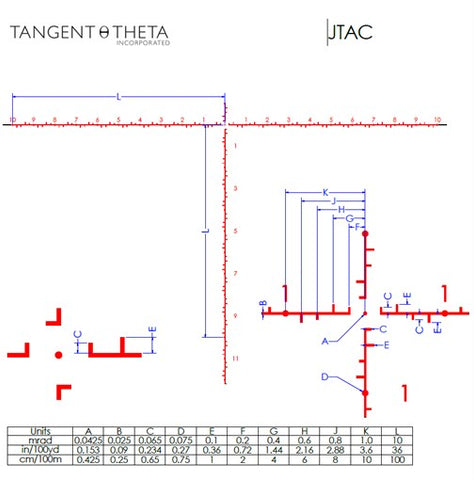

The JTAC and TREMOR 3 reticle versions will be built by Armament Technology starting early 2024!!!
Initially, the new TT735P will only be available in the 3 versions listed. Coyote Brown as well as other reticles and options will be added at a later stage.
PROFESSIONAL RIFLE TELESCOPES FOR PRECISION MARKSMEN
Tangent Theta is a company comprised of optical designers, mechanical designers, engineers and international-class long range marksmen devoted to creating rifle telescopes of unsurpassed quality and accuracy.
We design, develop and produce rifle telescopes that are beyond reproach in all aspects of design, utility, and service performance. We develop these products for precision marksmen across all markets, including professional marksmen, competitive shooters and recreational hunters/shooters.

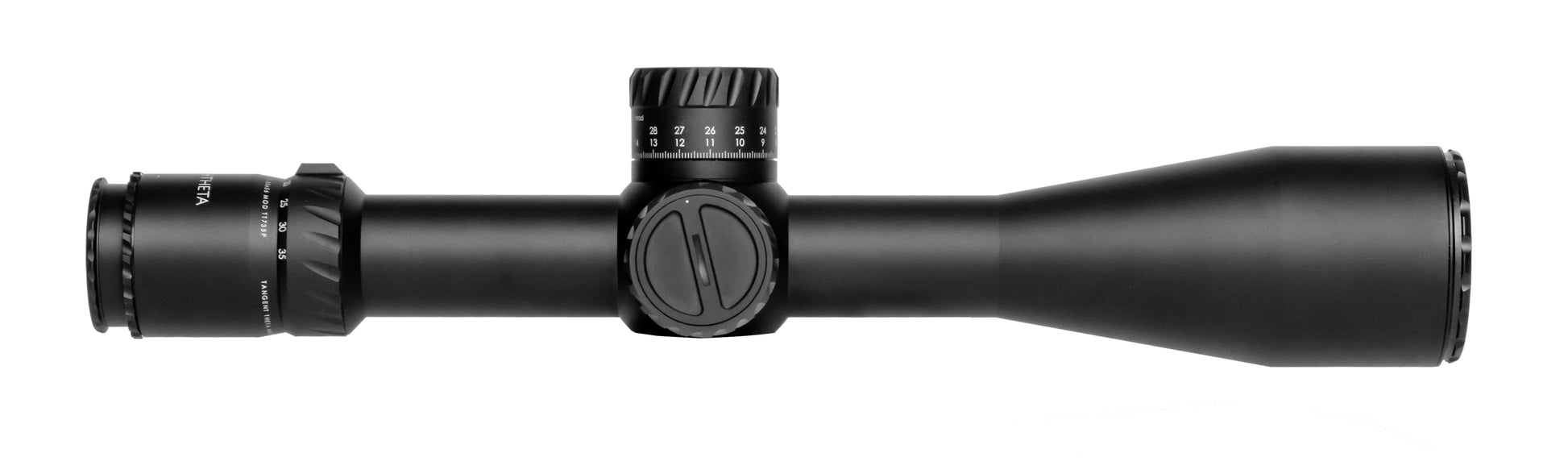

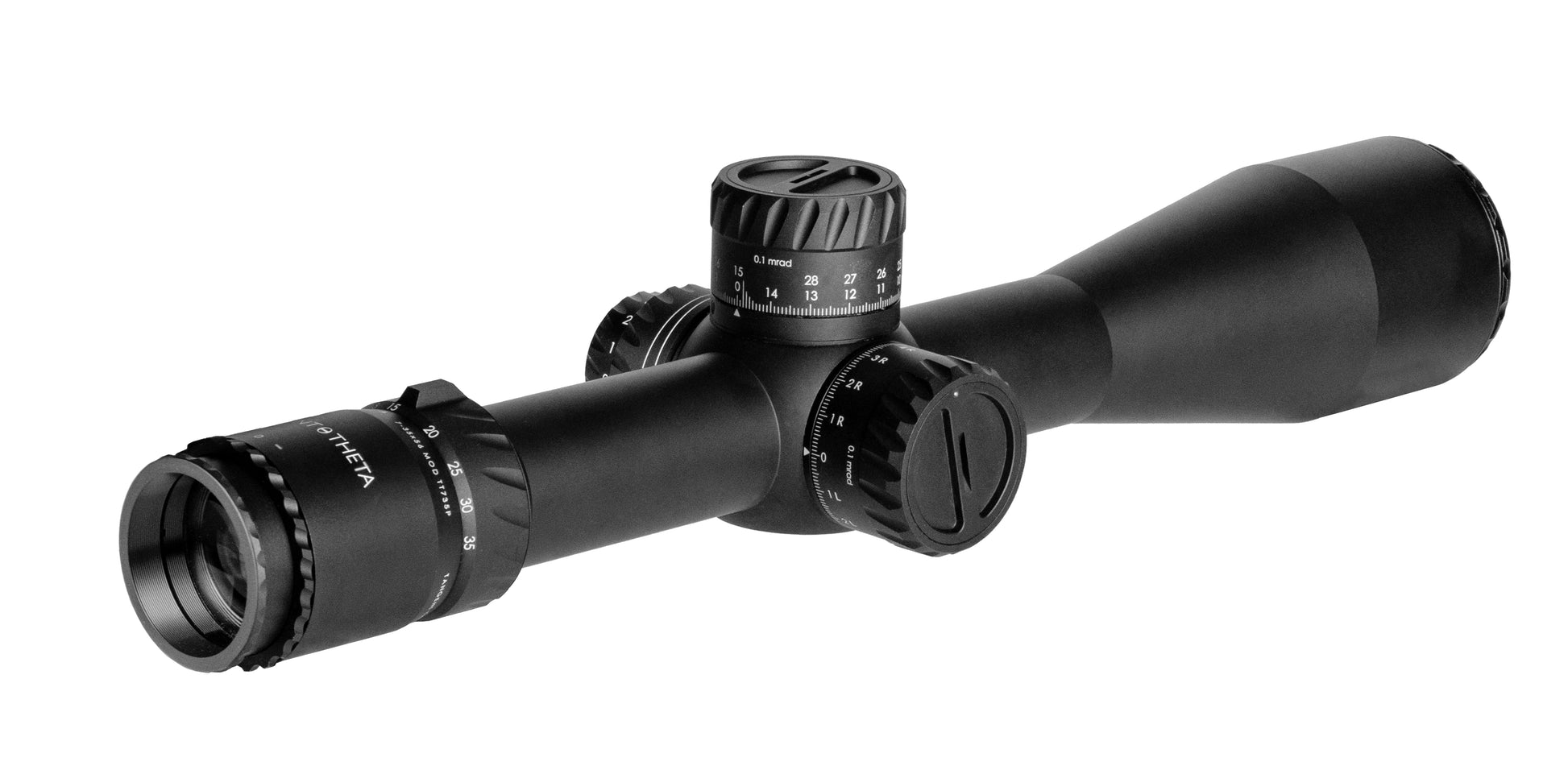

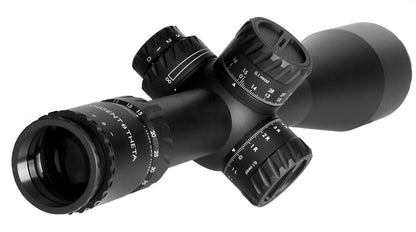

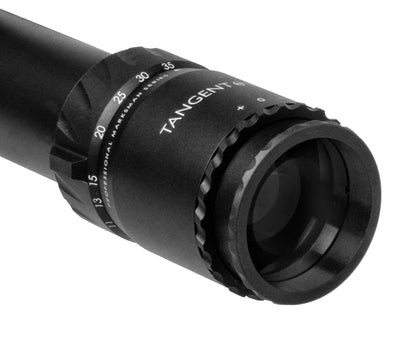

7-35x56mm Model TT735P
The all-new Tangent Theta TT735P, 7-35x56mm Rifle Telescope is the latest release in our line of extreme-range precision sighting instruments for professional marksmen.

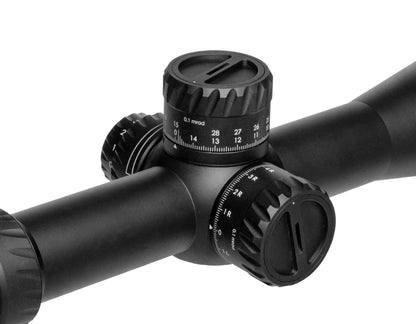

This 35x rifle optic delivers better positive target identification at distance with increased magnification, features the ability to parallax down 10 meters and is 24mm shorter than our 25x models, all benefits to the Extreme Long Range and Precision Rifle Series marksman. The TT735P includes Tangent Theta’s legendary elevation and windage turrets that deliver precise tactile response and feature a truly TOOL-LESS RE-ZERO® procedure and lockable diopters.
Tangent Theta rifle telescopes are built in Canada and are specifically designed and function-tested for long lifecycles in the harshest of environmental conditions.
Key Features
- 56mm objective lens
- 36mm main tube
- Will focus down to 10 meters
- eleven reticle illumination settings
- side parallax adjustment
- TOOL-LESS RE-ZERO® feature (US Patent # 10,591,253)
- non-translating knobs with elevation zero-stop
- double-turn elevation with rev indicator
- 7-35x magnification range
- lockable rapid adjusting diopter
Reticles
Features of the Tangent Theta TT735P
- 36mm Main Tube
- 56mm Objective lens diameter
- Parallax focus as close at 10 Meters
- Illuminated Reticle (11 settings of illumination)
- TOOL-LESS RE-ZERO feature (US Patent # 10,591,253) (same well known and durable Tooless Re-Zero as the Tangent Theta TT525P)
- Side parallax adjustment
- Double Turn Elevation Knob with second revolution indicator (which is both visual and tactile)
- 7X – 35X magnification range (5X Range)
- Lockable diopter
Included with the Scope
- Tenebraex Scope Caps
- Tenebraex Anti Reflection Device (ARD)
- LensPen Lens cleaning tool
- Microfiber cloth
- Laminated Reticle Specification
- Operation Manual
- plastic “coin” to open the battery compartment
Specifications of the Tangent Theta TT735P
- Magnification Range — 7X – 35X
- Adjustment resolution — 0.1 MRAD
- Length — 405mm | 15.94 inches
- Width — 103mm | 4.05 inches
- Height — 86mm | 3.38 inches
- Weight — 1230 g | 43.39 ounces
- Tube Diameter — 36mm
- Objective Bell diameter — 65mm | 2.56 inches
- Objective Lens diameter — 56mm | 2.20 inches nominal
- Field of view at 7X magnification — 3.1 degrees [5.41 meters at 100 meters] 5.41 feet at 109 yards
- Field of View at 35X magnification — .62 degrees [1.08 meters at 100 meters] 3.54 feet at 109 yards
- Eye Relief — 90mm | 3.54 inches
- Elevation Total Travel Range — 30 MRAD
- Elevation Working Range — 28 MRAD
- Windage Total Travel Range — 14 MRAD
- Windage Working Range — +/- 6 MRAD
- Parallax Adjustment Range — 10 meters | 11 yards to Infinity
- Battery Type — DL2032 3v Lithium (Coin Type)
- Waterproof — 4 hours at 10 meters
- Shockproof — 700 G’s @ 10,000 cycles
