COLOUR, THE WAY NATURE INTENDED.
When crafting the new TSN-66 PROMINAR series, Kowa went back to its routes in optical design. Routes which have made it one of the most popular spotting scope manufacturers in the world.
To enhance a basic fundamental feature that PROMINAR users enjoy every time they look through their eyepiece - Natural Colour.
Kowa has always prided itself on manufacturing optics that deliver a pure rendition of the view in front of the lens. Allowing you, the observer to explore and enjoy every detail of the subject.
An image free of negative optical distractions allowing you to immerse yourself into the scene in front of you.

PURE FLUORITE CRYSTAL OBJECTIVE

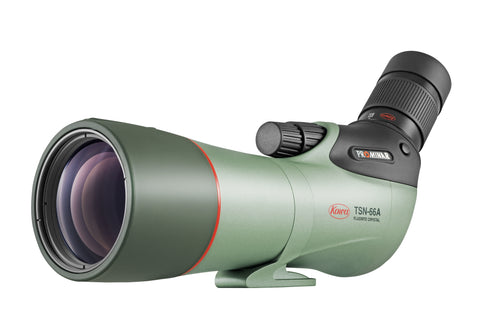

The new TSN-66 PROMINAR features a 66mm pure fluorite crystal objective lens - the true optical powerhouse at the heart of all PROMINAR flagship optics. This unique lens redefines the standards of colour brilliance and eliminates chromatic aberration for one of the most detailed views of the natural world.

HIGHER TRANSMISSION
Kowa engineers have improved the unique optical coatings applied not only to the lenses but also the prism in the new TSN-66 PROMINAR spotting scope series. The result is a spotting scope that delivers even higher levels of light wavelength transmission than its predecessor and most important of all, across the entire colour spectrum for the most natural colour of nature.

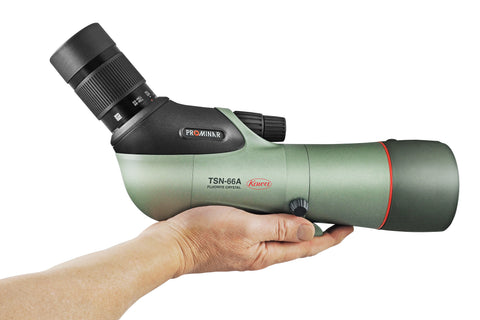

TOUGH, LIGHTWEIGHT & PORTABLE
The TSN-66 PROMINAR now benefits from a 100% magnesium alloy structure, making it not only tougher but also lighter than its predecessor. A fully waterproof and nitrogen sealed shell plus an upgrade of Kowa KR coating applied to the objective lens which repels dirt, moisture and dust from building on the surface, makes the scope reassuringly rugged.

DUAL FOCUS PIN POINT CONTROL
The dual focus mechanism is the gateway to controlling the image between your eye and the scope. Exquisite engineering is refined to make operation flawless. Quick focus allows for fast action to bring your subject in to detail in just a few smooth revolutions, whilst Fine focus gives pin-point, finger-tip control offering the ultimate in focussing accuracy.

LOOKS AREN’T EVERYTHING, BUT…

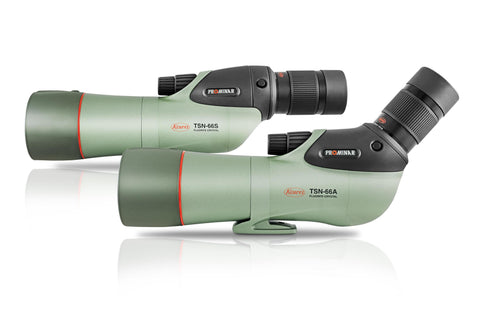

The TSN-66 PROMINAR adopts the new ergonomic curves and form created for the recent TSN-88 and TSN-99 PROMINAR scope series. There is no mistaking this spotting scope is PROMINAR. Classic green with new and improved elegant styling and a comfortable shape designed to give the user the best experience and operation out in the field.

STILL THE KING OF DIGISCOPING

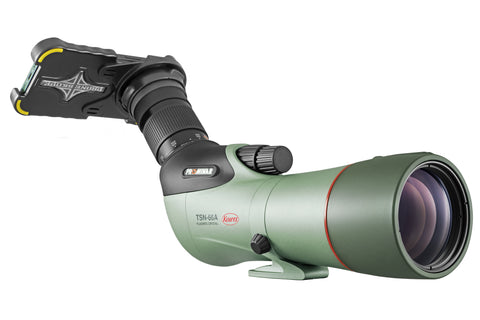

The TSN-66 PROMINAR retains its crown in the world of digiscoping, offering the photo enthusiast ultra long range telephoto photography options not possible in conventional photography. The improved coatings further enhance digiscoping performance even at the highest levels of magnification producing images that were once only achievable with high end DSLR systems. Kowa has an enviable line-up of dedicated and universal smartphone adapters to allow simple connection of most smartphone models to the TSN-66 PROMINAR, take highly magnified and detailed images and videos with your smartphone of the natural world.

DUAL TRIPOD MOUNT

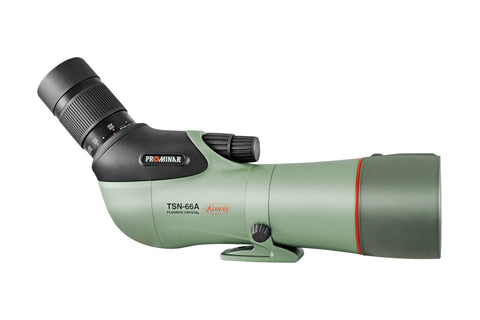

A new dual tripod mounting system prevents the scope from slipping or rotating on the tripod shoe ensuring extra stability for long periods of use. A game changer for ultimate convenience and handling out in the field.

AIMING SITE
The spotting scope includes a new detachable aiming site that can be fixed on to the accessory collar to assist in locating your subject more rapidly. The lens hood also features a newly designed built in aiming site as a further visual aid.

SPECIFICATIONS:

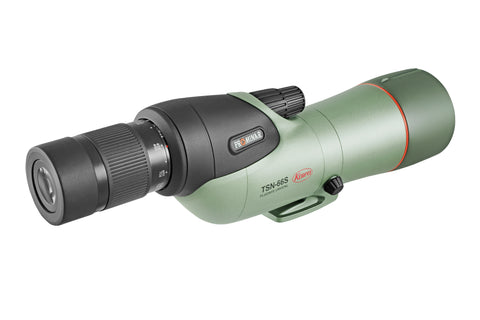

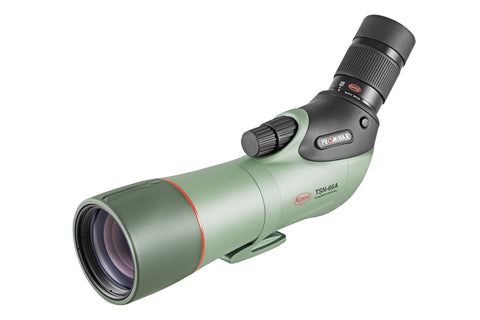

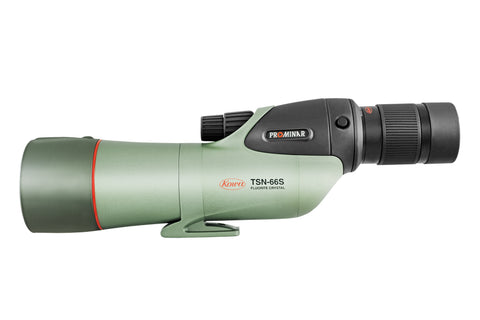

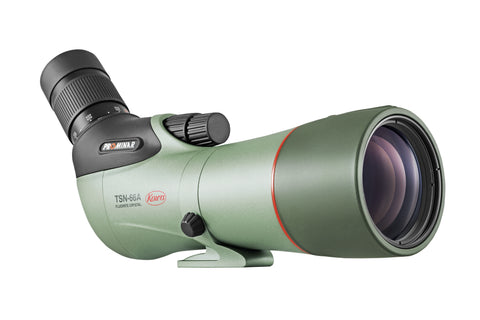

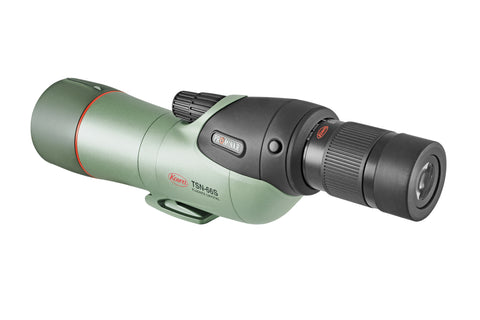

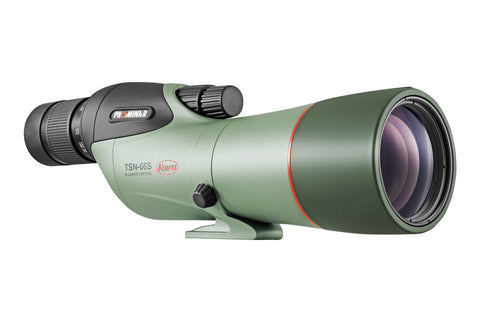

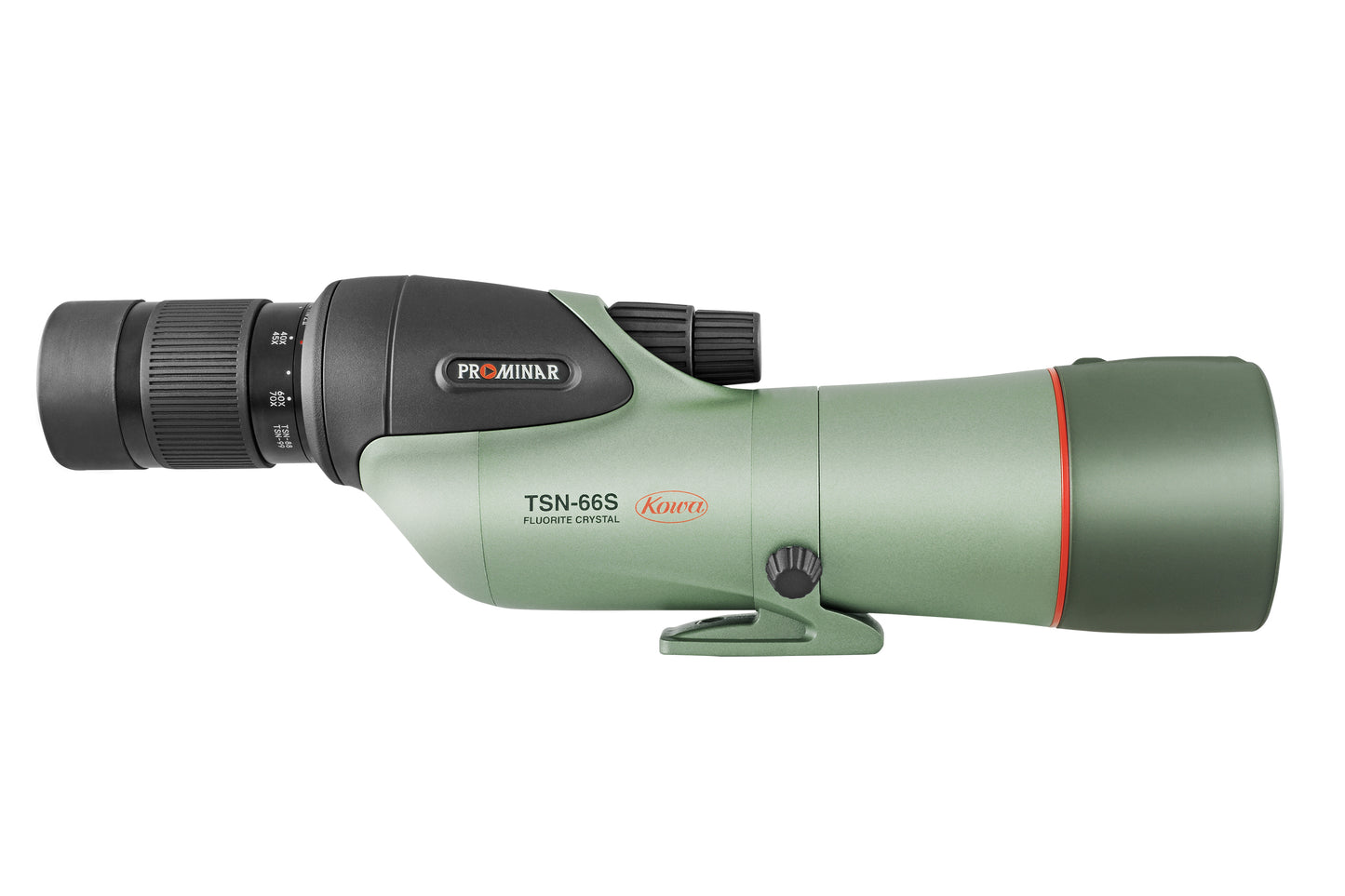

TSN-66 PROMINAR: 66MM PURE FLUORITE CRYSTAL SPOTTING SCOPE

Objective Lens Effective Diameter: 66mm

Objective Lens Material: Fluorite crystal

Minimum Focusing Distance: 11.5’

Length 66A / 66S body only: 12.2” / 11.6”

Length 66A / 66S zoom kit (inc eyepiece): 14.4” / 15”

Weight 66A / 66S body only: 2.50lb / 2.54lb

Weight 66A / 66S zoom kit: 3.30lb / 3.35lb

Filter thread: 72mm

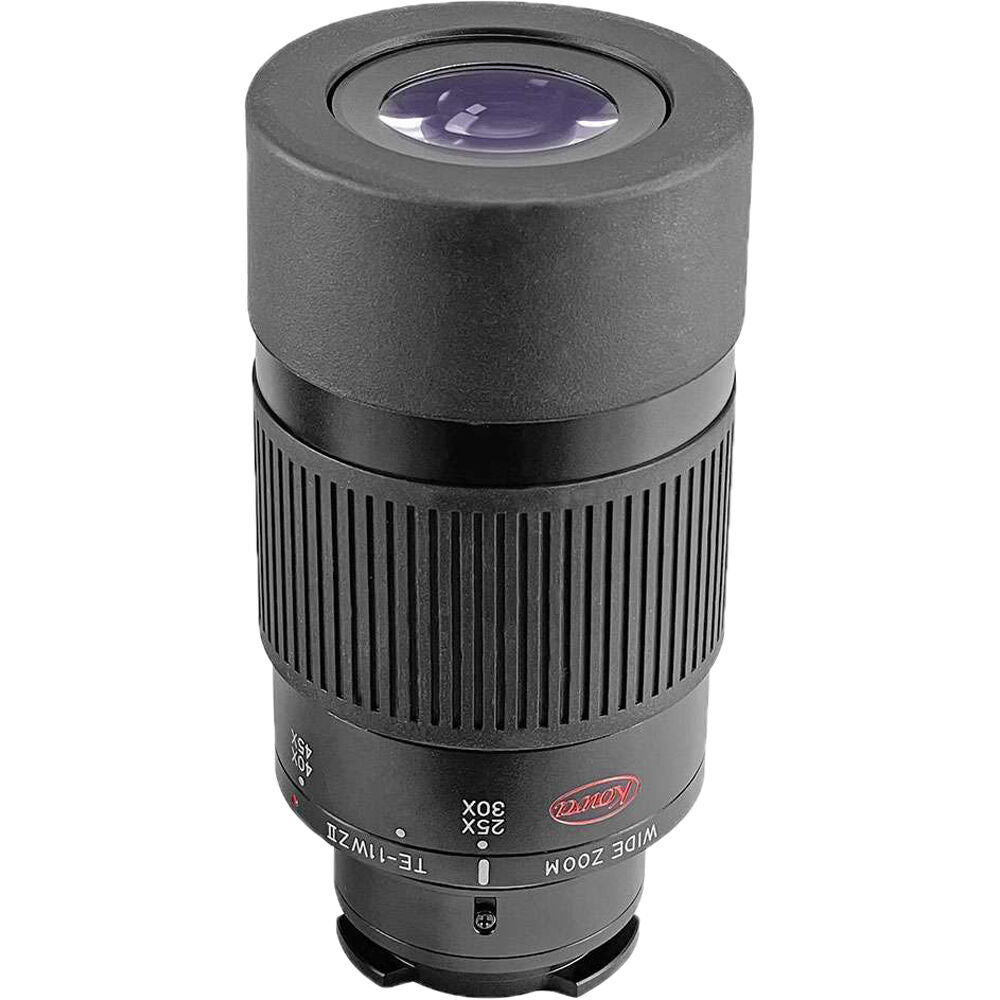

TE-11WZ II: 25-60X ZOOM WIDE ANGLE EYEPIECE

Magnification: 25-60x

Subjective field of view (degree): 55-69

Field of view at 1000m: 42-23m

Exit Pupil Diameter: 2.6-1.1mm

Relative Brightness: 6.8-1.2

Twilight Factor: 40.6-62.9

Eye Relief (mm): 17

Weight: 0.80lbs

Above eyepiece specification when attached to Kowa TSN-66 series. Specification changes when attached to other spotting scope bodies.

TE-80XW: 35X EXTREME WIDE ANGLE EYEPIECE

Magnification: 35x

Subjective field of view (degree): 80

Field of view at 1000m: 45m

Exit Pupil Diameter: 1.9

Relative Brightness: 3.6

Twilight Factor: 48.1

Eye Relief (mm): 17

Weight: 1.06lbs

Above eyepiece specification when attached to Kowa TSN-66 series. Specification changes when attached to other spotting scope bodies.
