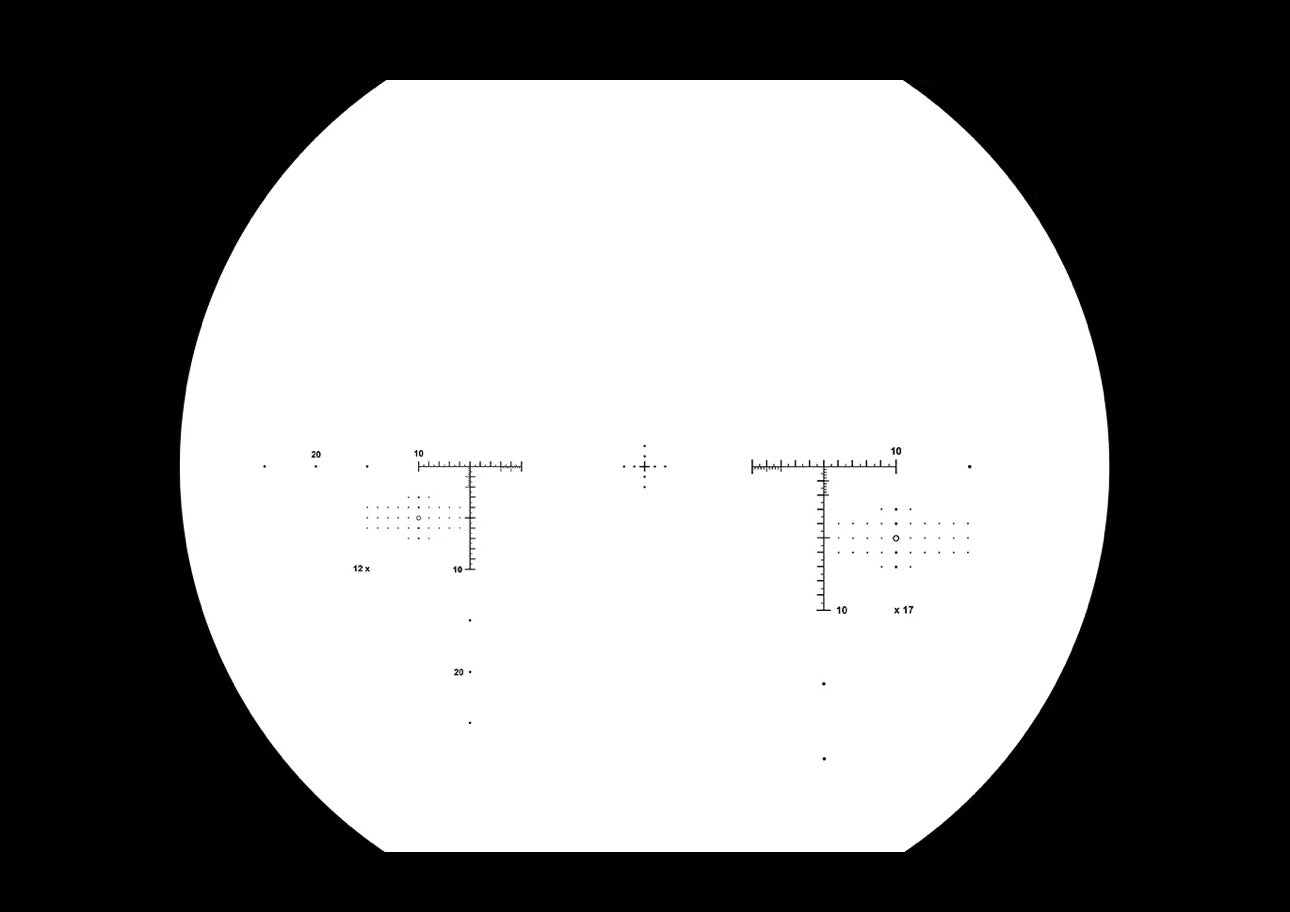

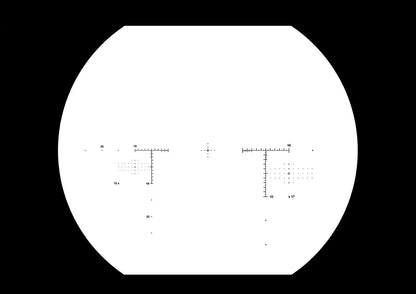

The MRAD-based Dual Magnification Reticle (MSR-DMR) is specifically designed for use in the RADICAL X with installed optional Range Enhancers that increase its magnification by 40%. With the MSR-DMR the VECTOR X has a calibrated reticle for both magnification levels. It consists of two reticle segments that are separated from one another. This distinct separation makes it easy and intuitive for users to choose the correct reticle segment when calling hits or making calculations.
The right reticle segment of the MSR-DMR is to be used when the Range Enhancers are installed on the RADICAL X. This segment takes into account the increased magnification provided by the Range Enhancers, allowing for accurate range estimation, holdovers, or any other calculations required. The left reticle segment is designed for use with the base magnification of the RADICAL X when the Range Enhancers are not installed.
FLEXIBLE USE
By incorporating the MSR-DMR into the RADICAL X, users can seamlessly switch between the two reticle segments based on whether they have the Range Enhancers installed or not. This ensures optimal performance and accuracy in various shooting scenarios.
OPTIONALLY AVAILABLE ACCESSORIES
We have collaborated with renowned third-party manufacturers to offer specialized optional accessories for your RADICAL X to enhance it capabilities.

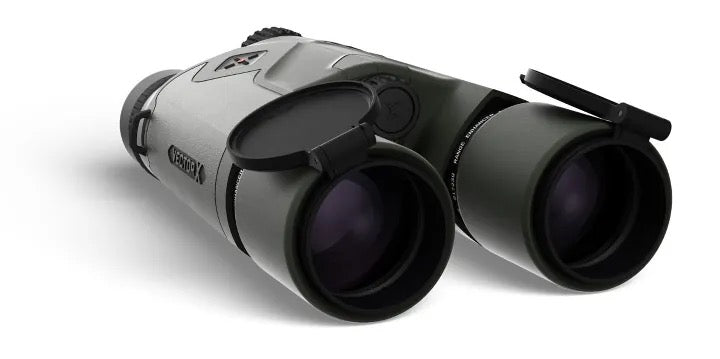

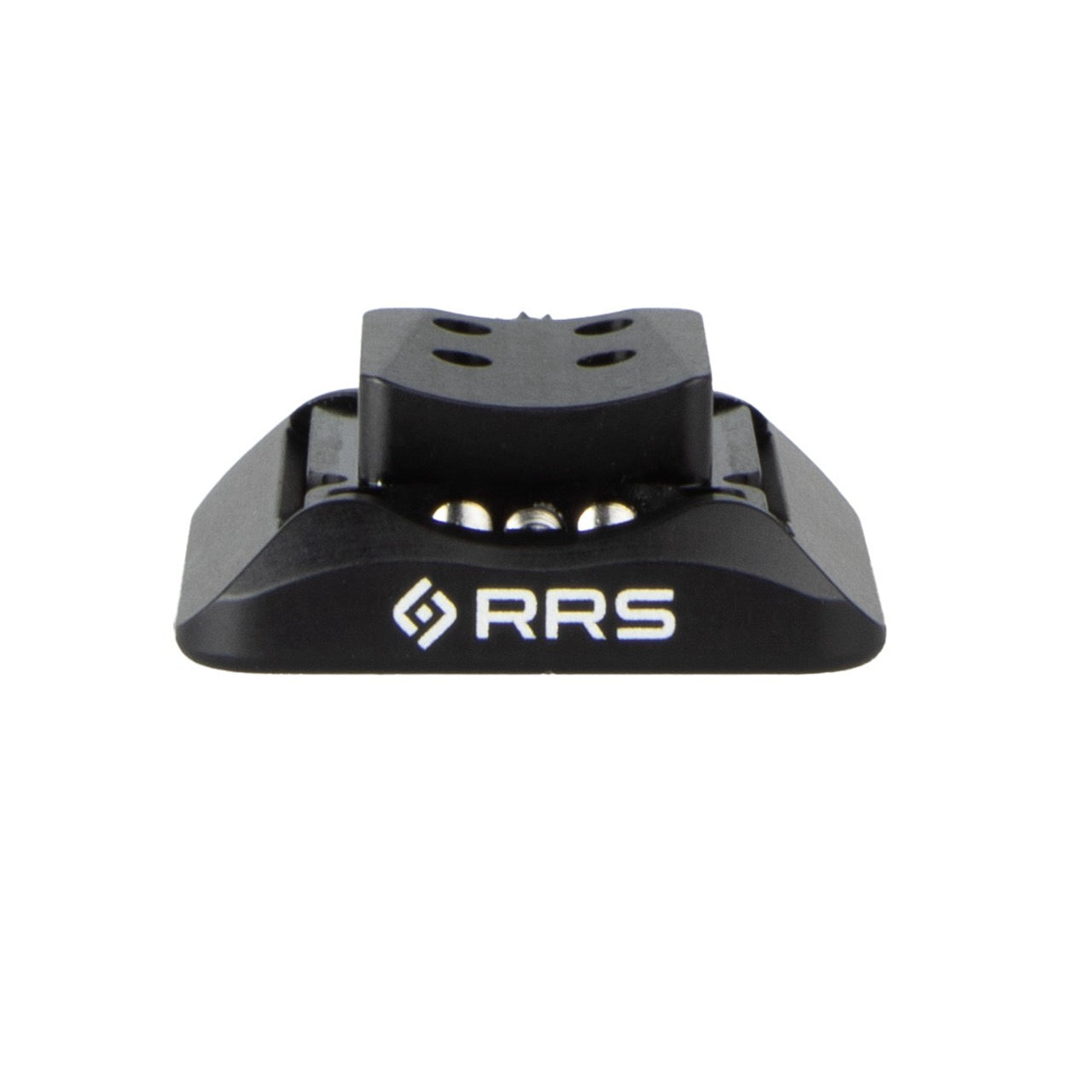

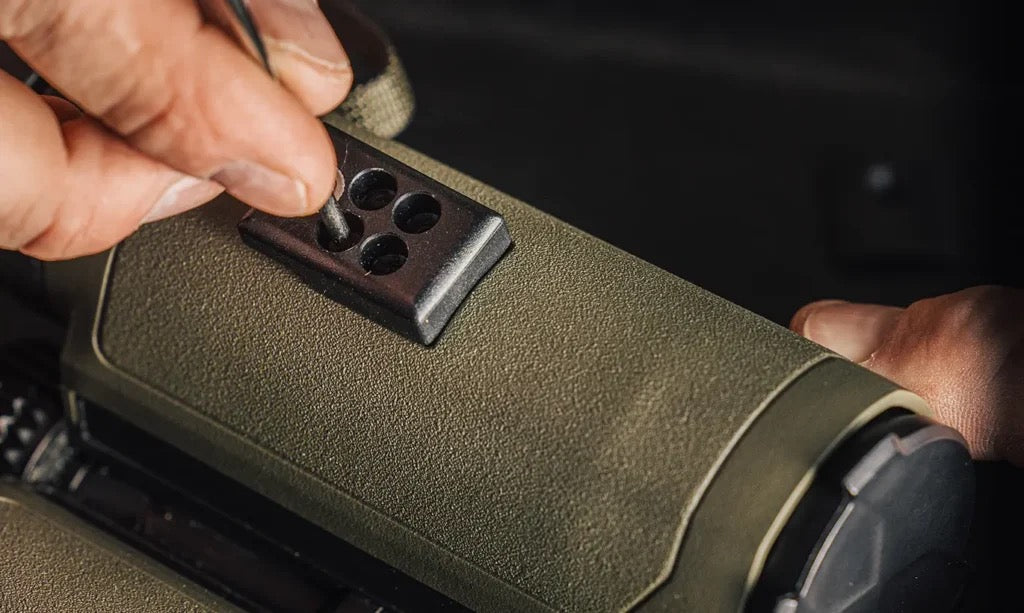

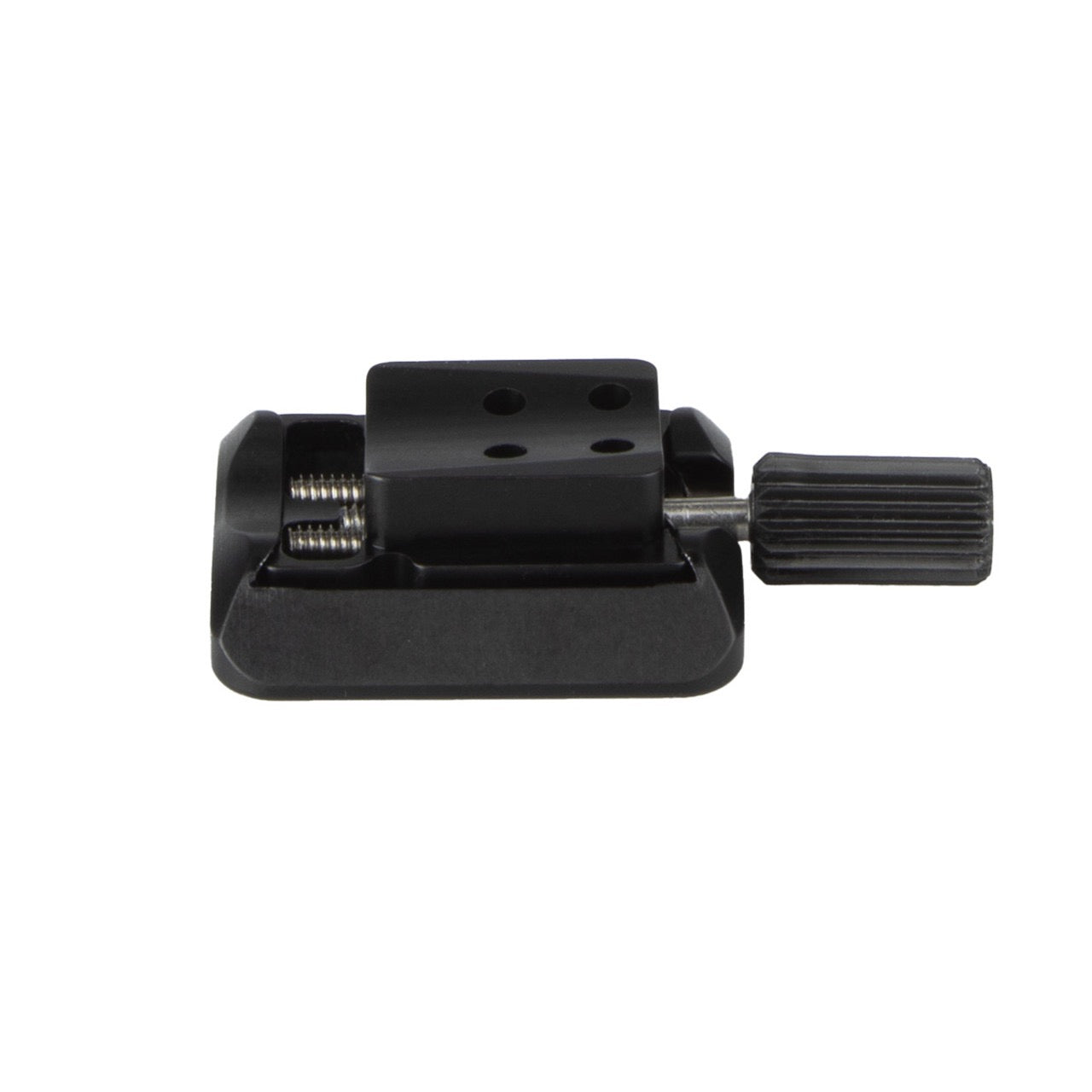

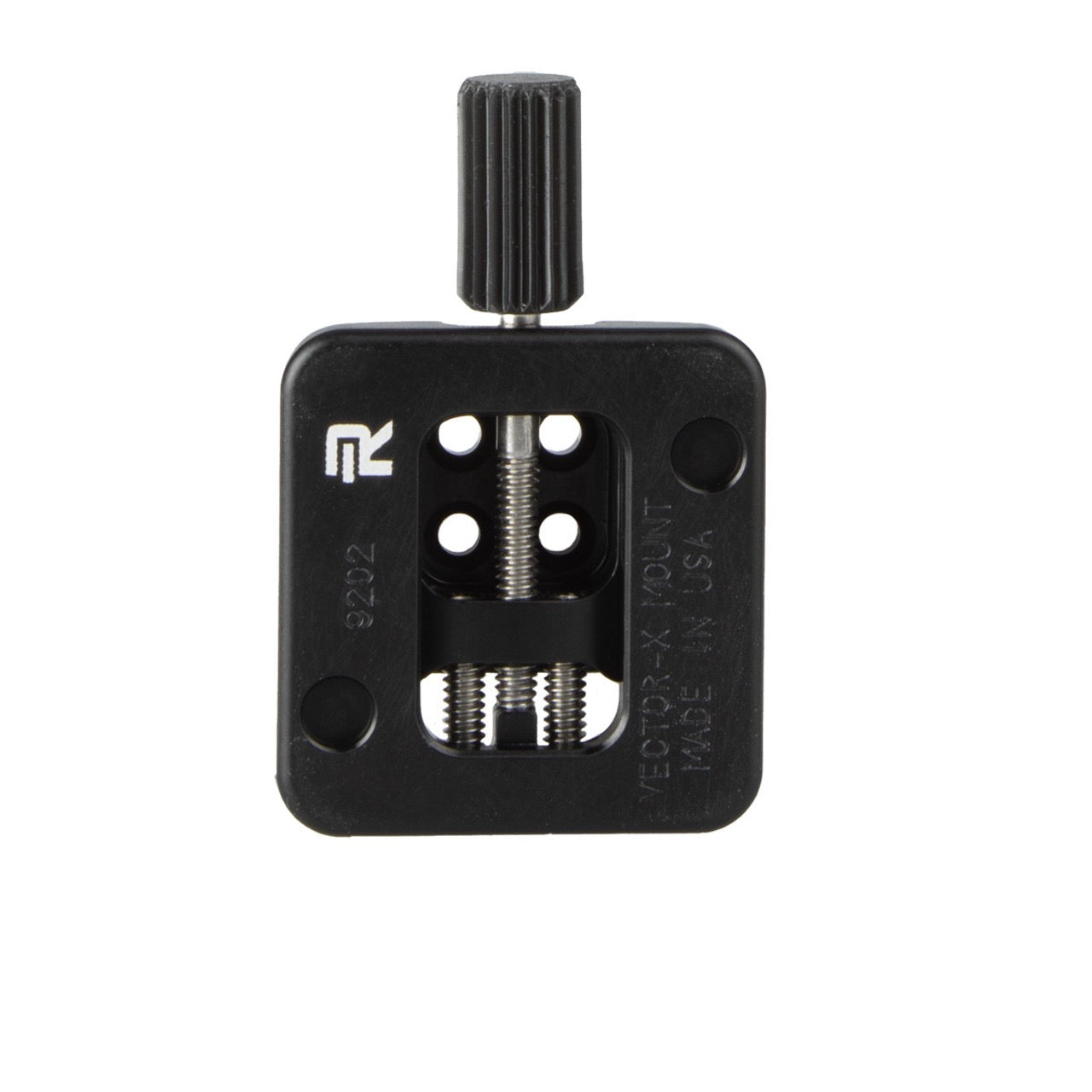

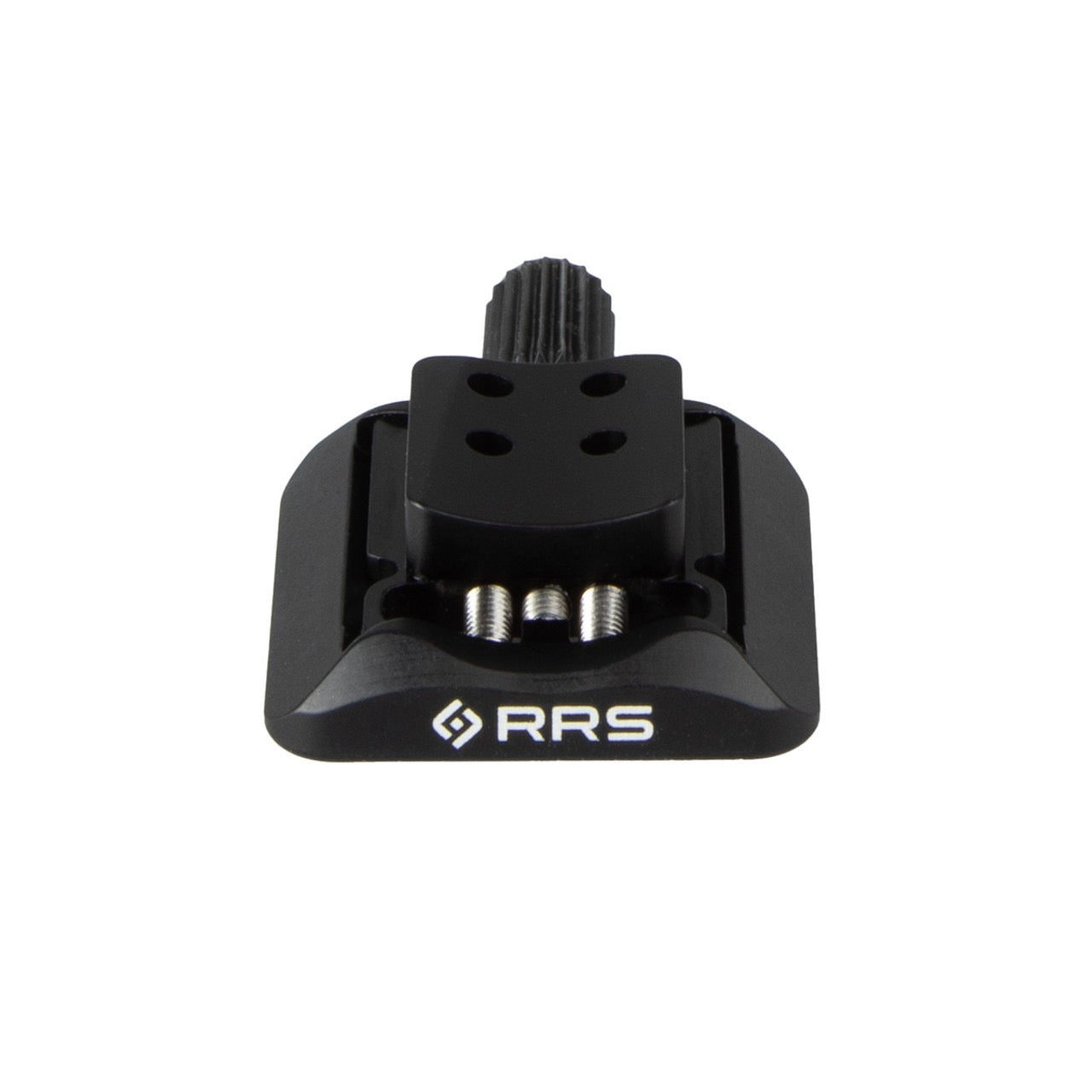

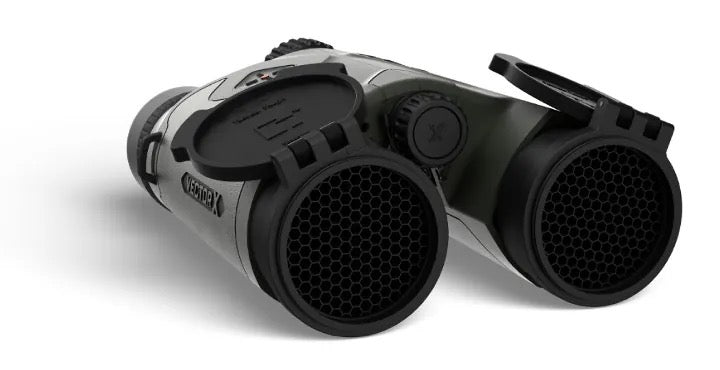

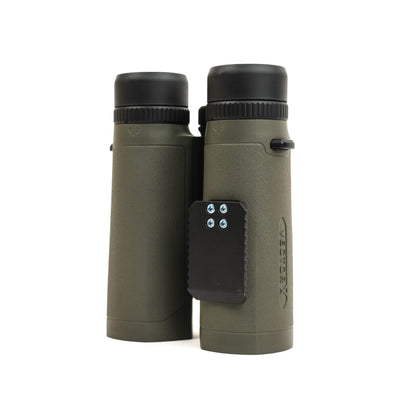

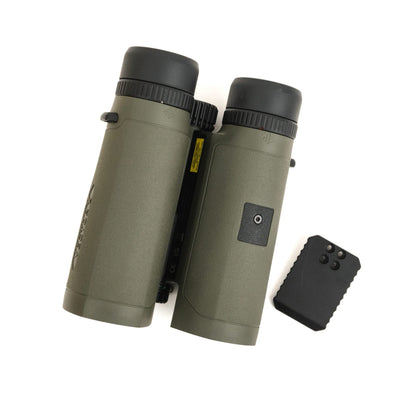

Really Right Stuff (RRS) provides a dedicated mounting plate designed exclusively for the RADICAL X (and VECTOR X) as an optional accessory. Equipped with a 1.5” RRS dovetail plate, it securely attaches to the tripod interface of the RADICAL X. The advanced mechanism of the RRS mounting plate enables precise alignment of the RADICAL X, adjusting optimally based on the degree to which the center hinge is folded. The M46x0.75 front objective threads of the RADICAL X are designed to attach specialized accessories, allowing for the installation of Range Enhancers that increase the magnification of the RADICAL X by 40%. Another screw-on accessory are the optionally available Anti-Reflection Devices (ARDs) made by the Canadian manufacturer Tenebræx that effectively block glint and stop reflections. This high quality accessory is equipped as standard with sturdy flip caps that can be rotated a full 360 degrees.
RANGE ENHANCERS
Over the years, we have delivered a significant number of military Vector rangefinding binoculars to the different branches of the US Armed Forces. Responding to their request for increased magnification, we developed optional screw-on Range Boosters, which increase the base magnification of the Vector by 40%. They quickly gained popularity and became an immediate success.
As we embarked on the development of the RADICAL X, it became evident that a similar accessory that increases magnification would be an essential element we wanted to incorporate. This accessory for the RADICAL X are the optionally available Range Enhancers. They also offer an increase in base magnification by 40% and are easily installed by screwing them onto the threaded objectives of the RADICAL X.
INCREASE MAGNIFICATION BY 40%
The optional Range Enhancers increase flexibility and range of use of the RADICAL X tremendously. With the Range Enhancers installed, your RADICAL X becomes a formidable long-range spotting device:
- 8×42 RADICAL X increases to 11×42
- 10×42 RADICAL X increases to 14×42
The MSR-DMR reticle is calibrated for both magnification levels making it the perfect reticle for the RADICAL X with equipped Range Enhancers.
AS RUGGED AS THE VECTOR X ITSELF
To ensure durability and protection, the Range Enhancers are equipped with a protective rubber armoring. Additionally, they come with a protective soft case for convenient storage and transportation. It’s worth noting that the flip-up lens covers of your VECTOR X can be used with the Range Enhancers as well. This allows for effective protection of the front lenses, guarding them against scratches and other potential damage.
BUILT TO ENDURE
Manufacturing the most rugged, reliable and durable devices is deeply ingrained in our company’s DNA, stemming from our strong roots in the defense industry. This commitment to quality is immediately evident when you pick up a RADICAL X for the first time.

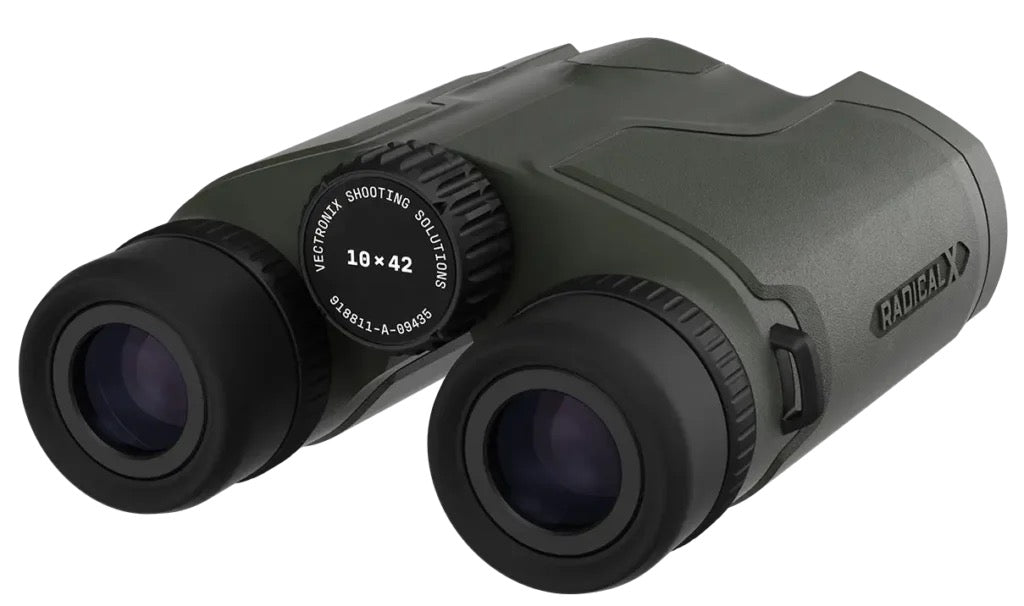

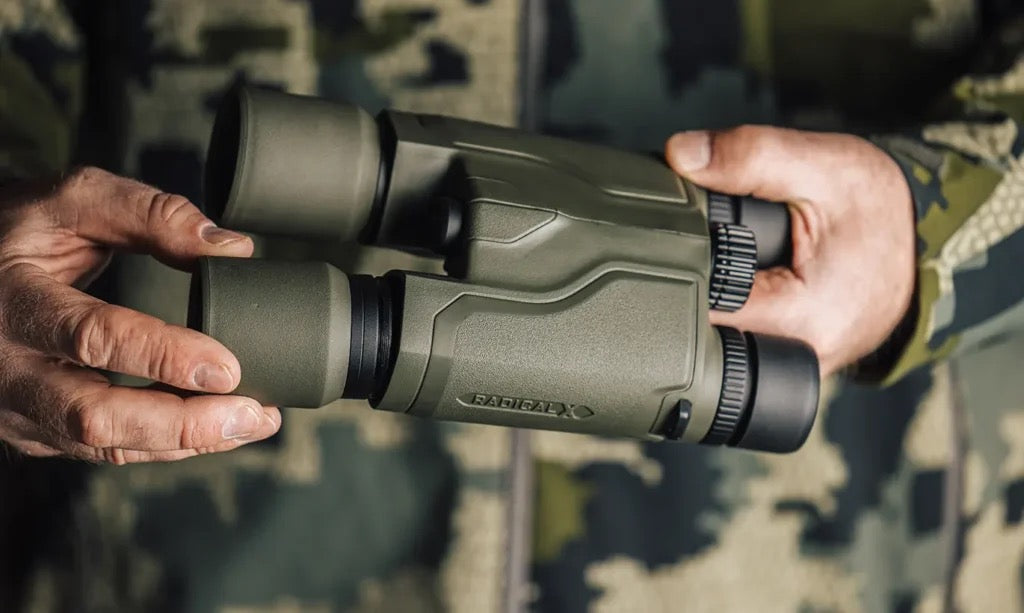

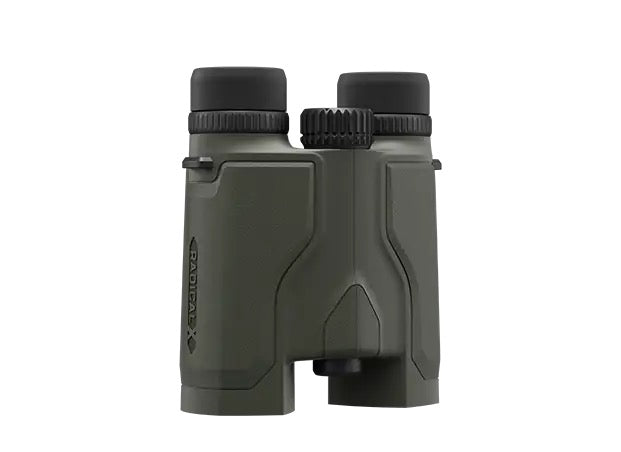

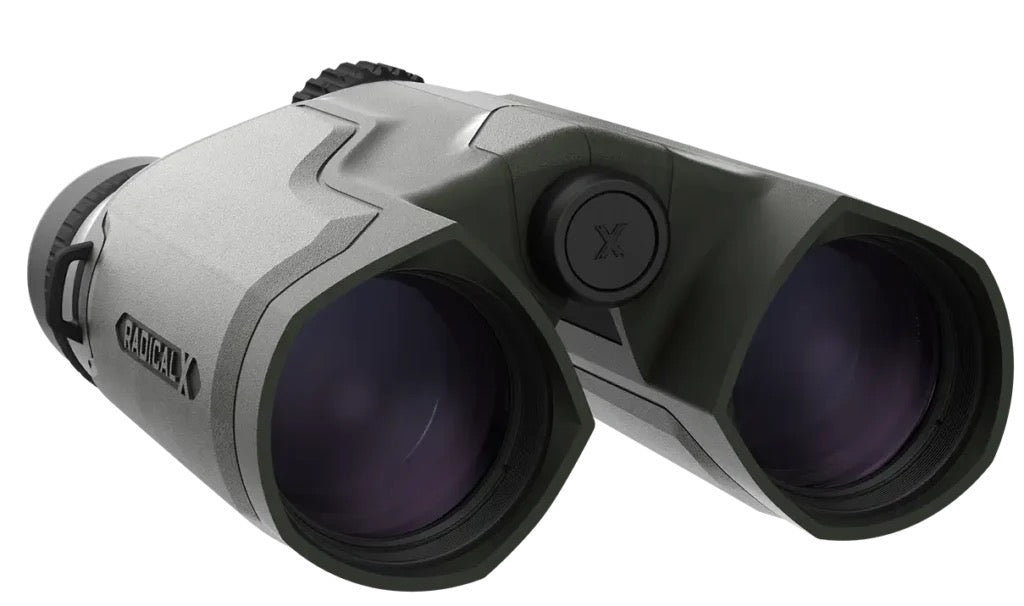

The housing of the RADICAL X is made from robust yet lightweight magnesium. Its high-quality rubber armoring protects it in case of falls and provides a secure, non-slip grip to prevent them from happening in the first place. The focus wheel and diopter adjustment are made from aluminum, as is the mechanism of the twist-up eyecups that click positively into each of the four click stops.
IP-67 RATING
The IP-67 rating of the RADICAL X means that it is protected against solid ingress and that it can sustain momentary water immersion in depths of 1000 mm for up to 30 minutes maximum.
